SS30 Yellow LED Light Bar
Product Description
Cut through fog, rain, and snow with the Diode Dynamics SS30 Yellow LED Light Bar. This light bar emits a yellow (≈ 3000 K) beam that enhances contrast and reduces glare in inclement weather, while the slim-profile housing lets you tuck it into tight mounting locations. Built with advanced TIR optics for efficient light projection, it makes a great auxiliary or accent lighting option for grille, bumper, or roof setups. Rugged and weatherproof, it’s made to perform on-road or off.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

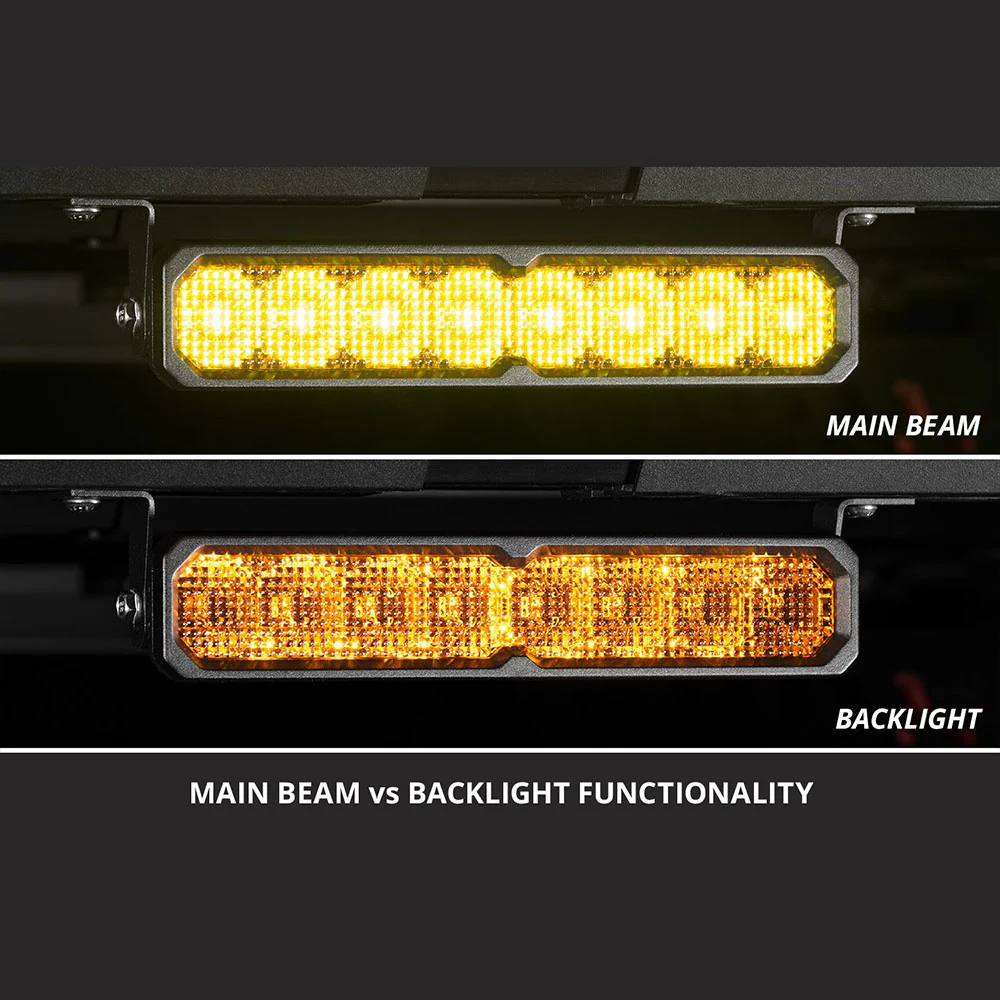

- Modern welcome sequence and selectable backlight color with SmartSelect technology.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 120, Pro: 165
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2.01x31.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 181,000 cd | 1,810 lux | 11,064 lm | 3000K |
| SAE Driving Pro | 242,000 cd | 2,420 lux | 37,632 lm | 3000K |
| Flood Sport | 5,700 cd | 57 lux | 11,064 lm | 3000K |
| Flood Pro | 10,000 cd | 100 lux | 37,632 lm | 3000K |
| Combo Sport | 93,000 cd | 930 lux | 11,064 lm | 3000K |
| Combo Pro | 127,000 cd | 1,270 lux | 37,632 lm | 3000K |
| Spot Sport | 421,000 cd | 4,210 lux | 11,064 lm | 3000K |
| Spot Pro | 471,000 cd | 4,710 lux | 37,632 lm | 3000K |
