Product Description

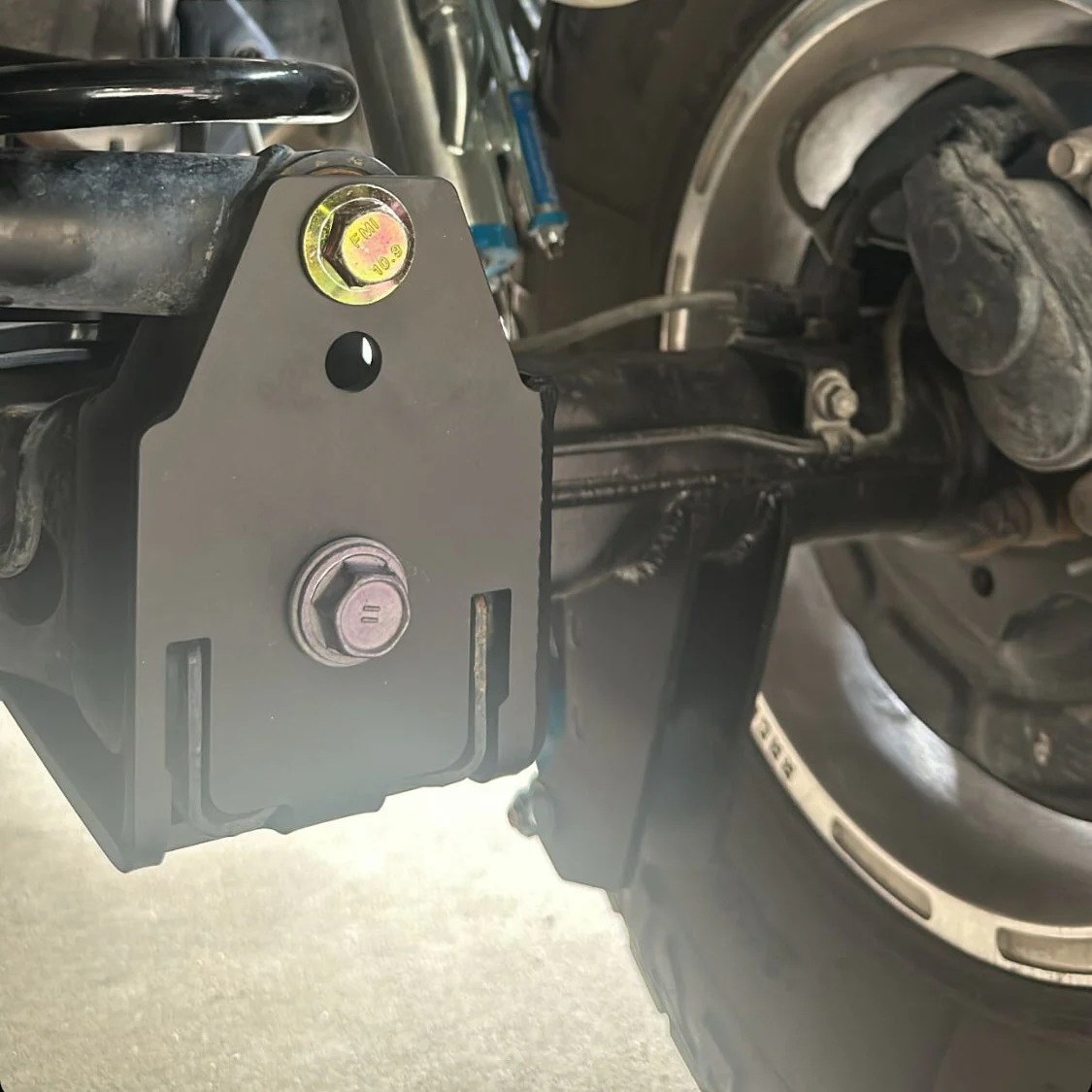

Correct rear axle alignment on your lifted Sequoia with the B.O.T.C.K. Bolt-On Track Bar Correction Kit. This kit repositions the rear track bar to restore proper geometry after installing a lift. The result is a more centered rear axle, improved handling, and reduced side-to-side movement—without cutting, welding, or permanent modifications.

Fitment Notes

• Fits all 2024+ Land Cruiser's
• Fits all 2025+ 4Runner's
• How to Pick the Correct B.O.T.C.K. Version
  • Park on level ground.
  • Measure from the ground to the center of the frame-side track-bar bolt.
  • Measure from the ground to the center of the axle-side track-bar bolt.
  • Subtract the two measurements to find your bolt-height difference:
    • 1.5"–2.99" → Shorty Version (or use the bottom hole on the Standard bracket)
    • 3" or higher → Standard Version (use the top hole)

• Torque spec: 105 ft-lbs on all bolts with lots of blue Loctite (or a little red)

Included

• Front bracket
• Back bracket
• Flag nut
• (1x) M14 x 1.5 x 75mm flange head bolt
• (2x) M14 x 1.5 x 35mm flange head bolt
• (1x) M14 hex nut
• All hardware is zinc coated

Product Features

• Recenters the rear axle after installing a lift
• Improves straight-line stability and overall handling
• Reduces rear-end shift and lateral movement
• Bolt-on installation—no cutting or welding required
• Maintains proper suspension geometry and drivability
